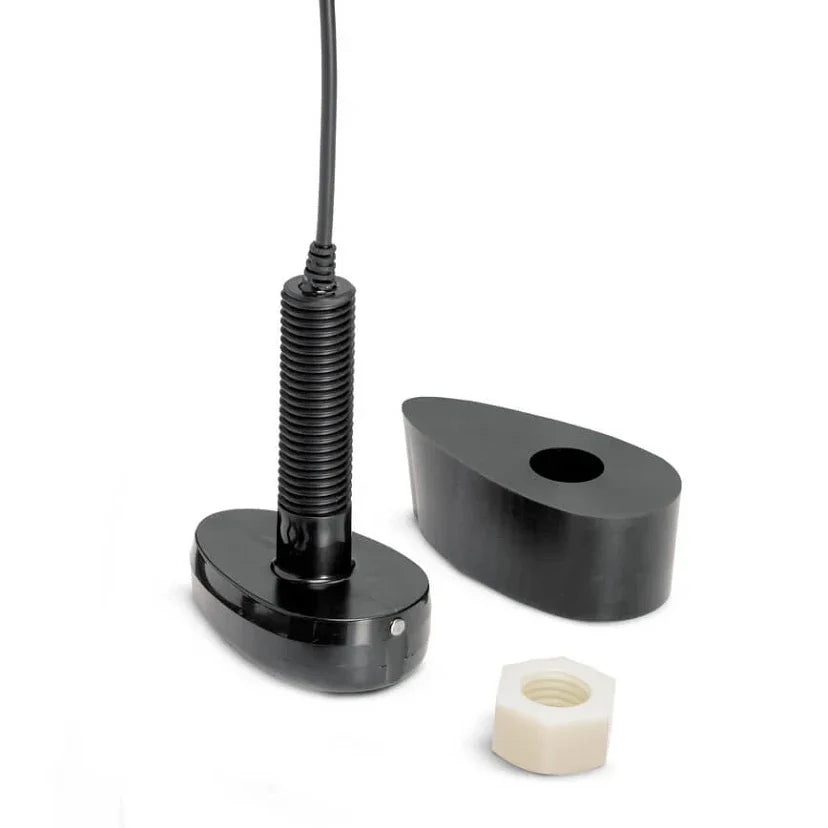

Plastic Thru-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor.
Compatible With
HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

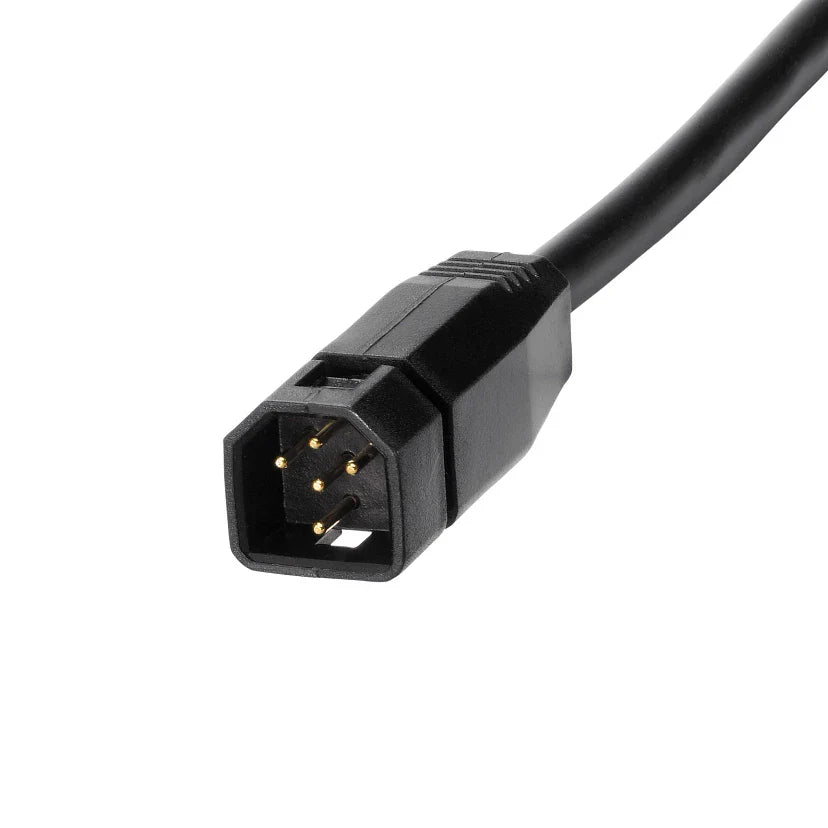

Cable Length
30 feet
2D Sonar Only
Side Imaging™ and Down Imaging™ units can support the XPTH 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
Dual Spectrum CHIRP Frequencies
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Dual Spectrum CHRIP Max Depth
1200ft (365m)
Dimensions
L 4.0" x W 2.5" x D 1.2" - Stem Length 4", Stem Diameter 1"
Warranty
1-Year Limited Warranty
