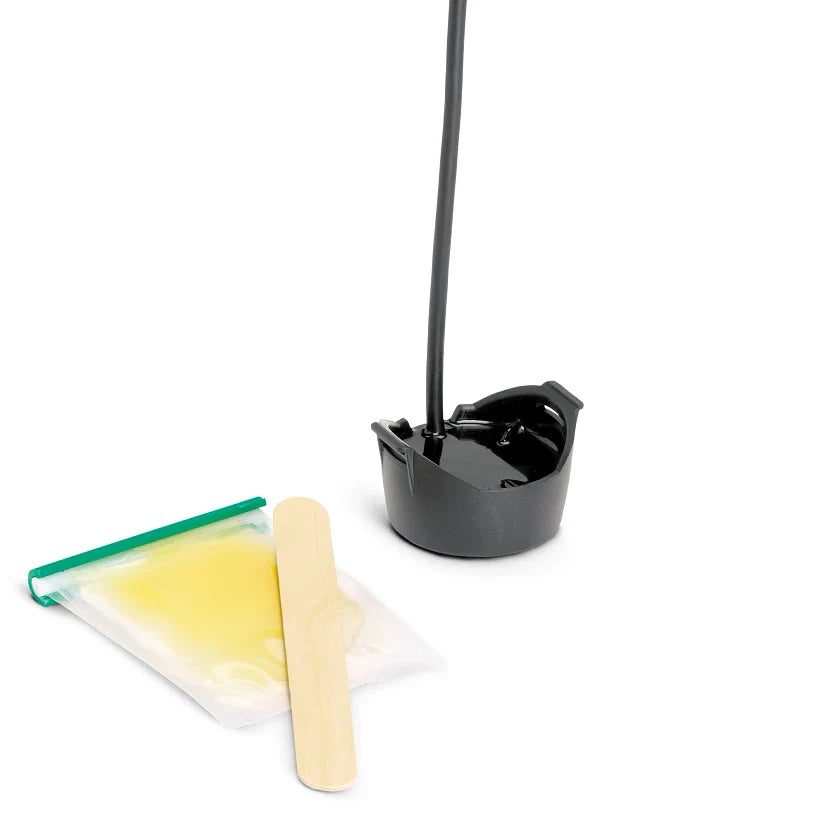

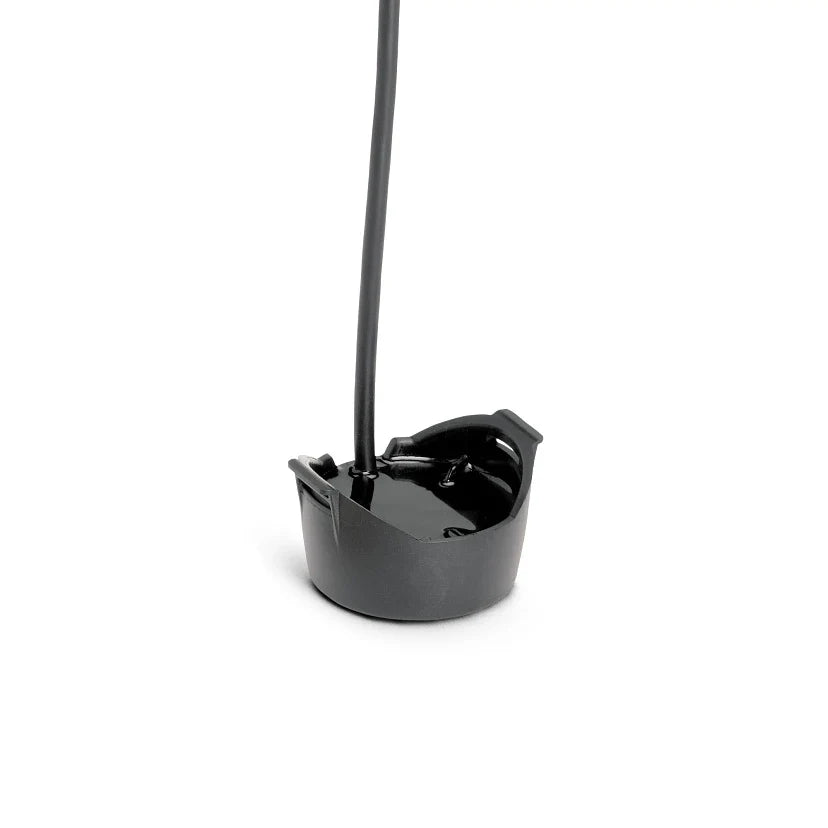

In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. No temperature.
Compatible With
HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

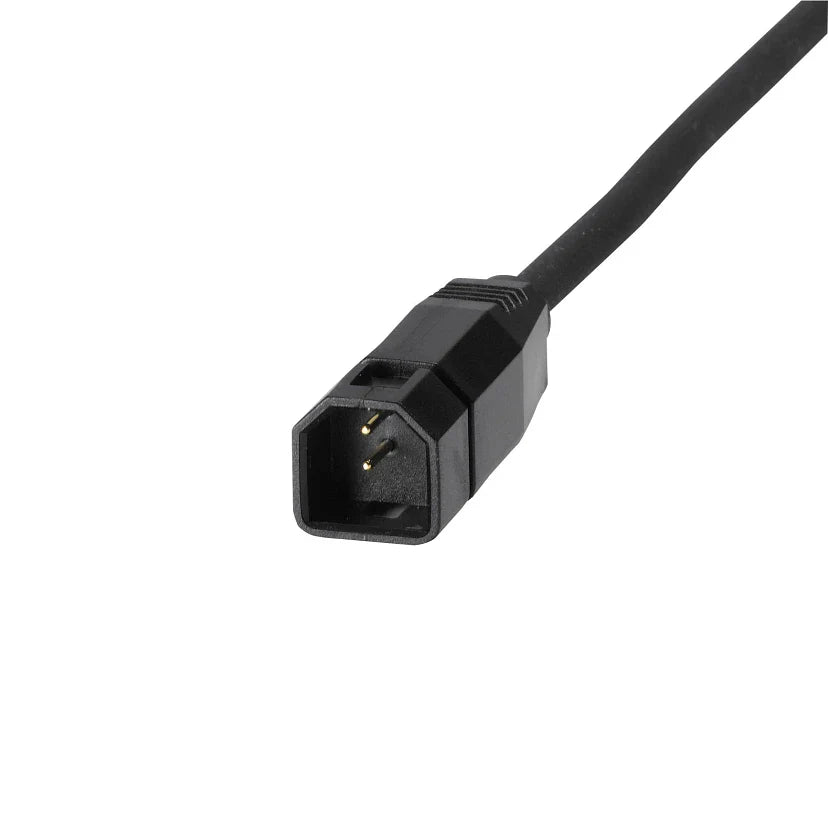

Cable Length
15 feet
Notice
Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
Dual Spectrum CHIRP Frequencies
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Dual Spectrum CHIRP Max Depth
1200ft (365m)
Warranty
1-Year Limited Warranty
