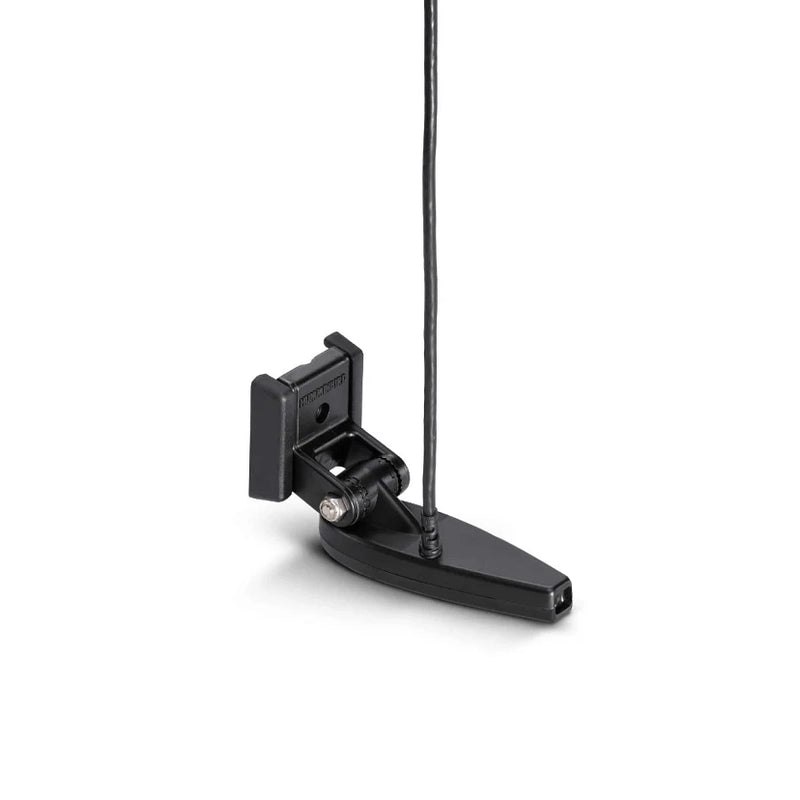

Humminbird XNT 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Transom Transducer

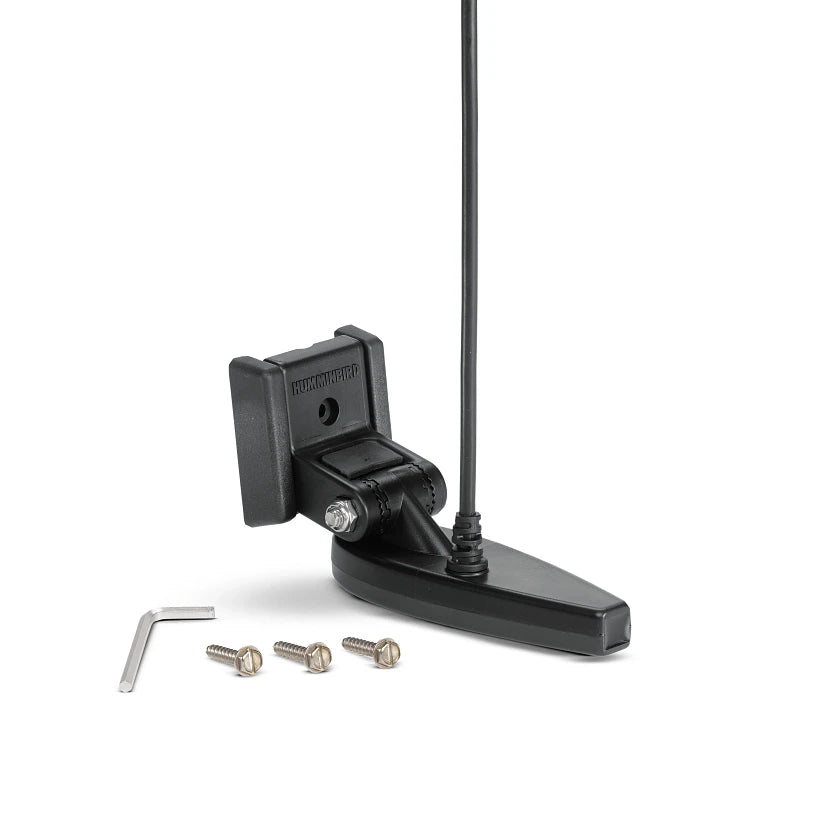

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/ 455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20’ cable.

Compatible With
HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N

Cable Length
20 feet

Dual Spectrum CHIRP Frequencies
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

Dual Spectrum CHIRP Max Depth
1200ft (365m)

MEGA Down Imaging Frequencies - Max Depth
455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)

Warranty
1-Year Limited Warranty
