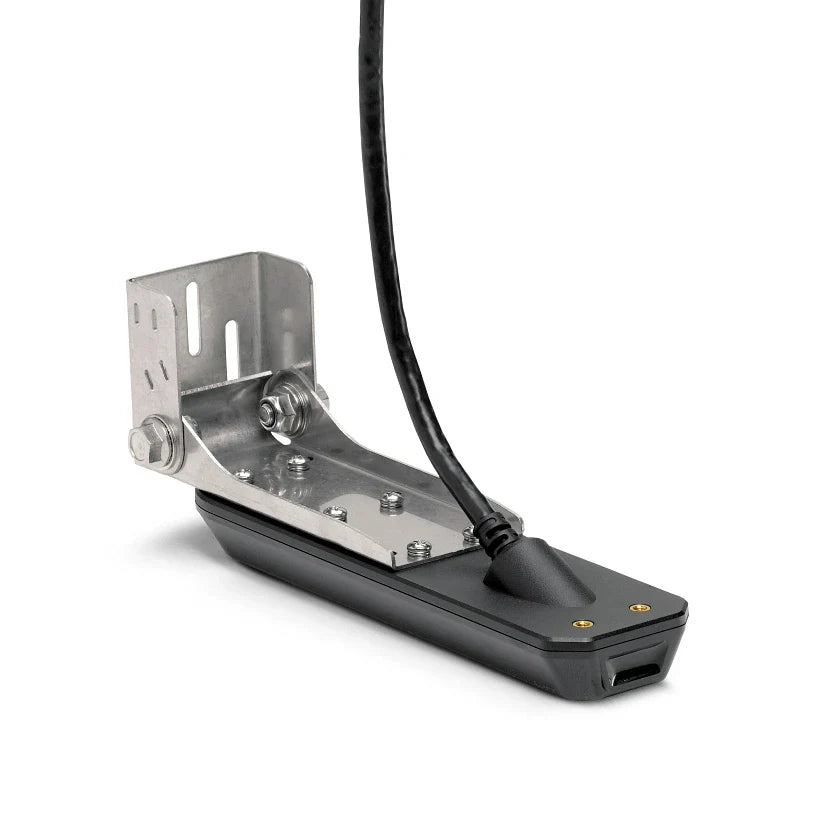

Humminbird XM 14 HW MSI T - XPLORE/APEX/SOLIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer

Transom Mount, MEGA Side Imaging+, MEGA Down Imaging+, 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor.

Compatible With
All XPLORE models, All APEX models, All SOLIX MEGA SI+ G2 and G3 models

Cable Length
20ft

Dual Spectrum CHIRP Frequencies
Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

Dual Spectrum CHIRP Max Depth
1200ft (365m)

MEGA Side Imaging Frequencies - Max Range (side-to-side)
455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)

MEGA Down Imaging Frequencies - Max Depth
455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

What's Included

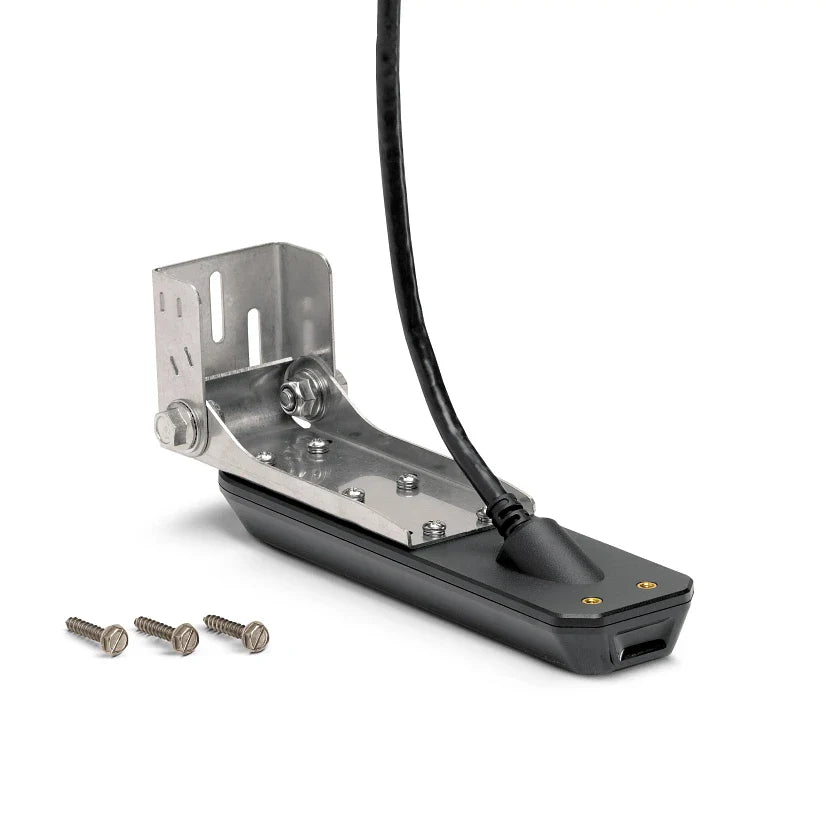

Transom mount transducer (includes built-in Temperature) with 20 ft cable length, Mounting hardware, Installation instructions

Warranty
1-Year Limited Warranty
