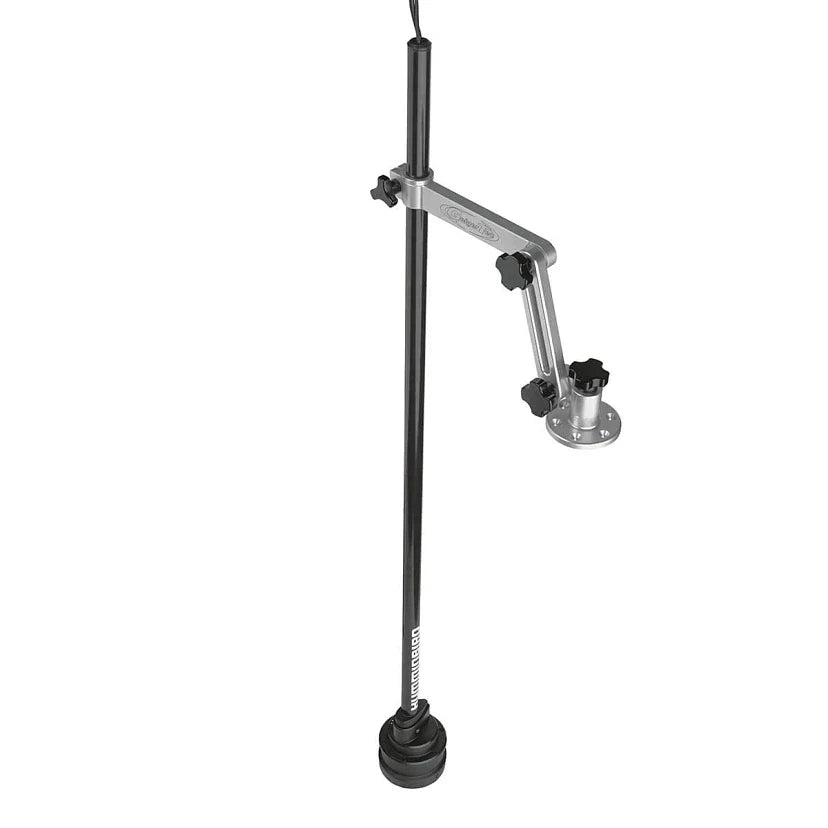

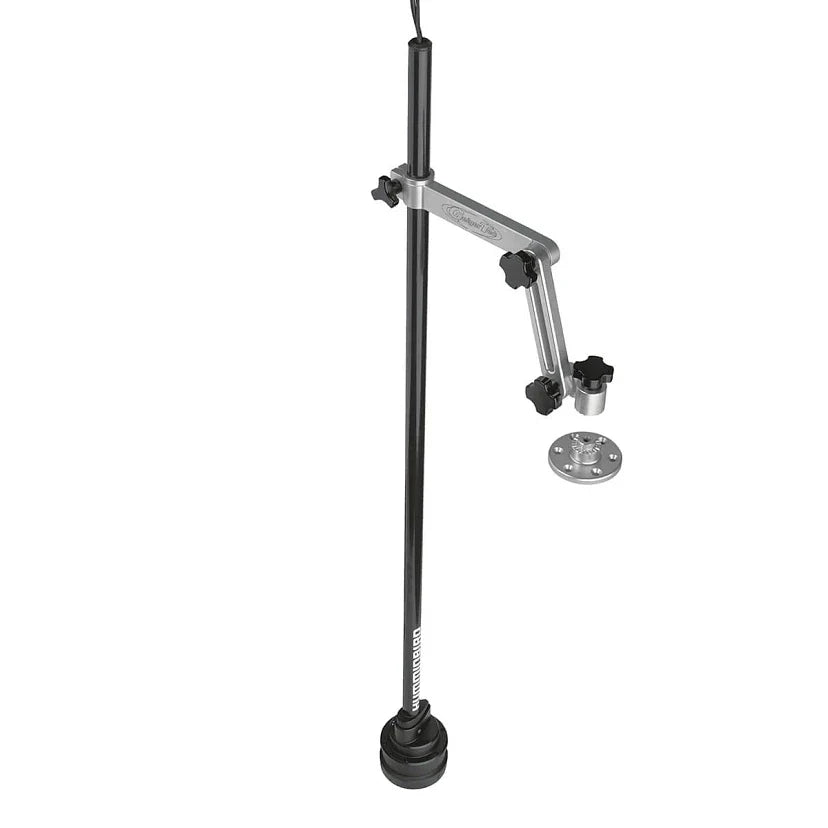

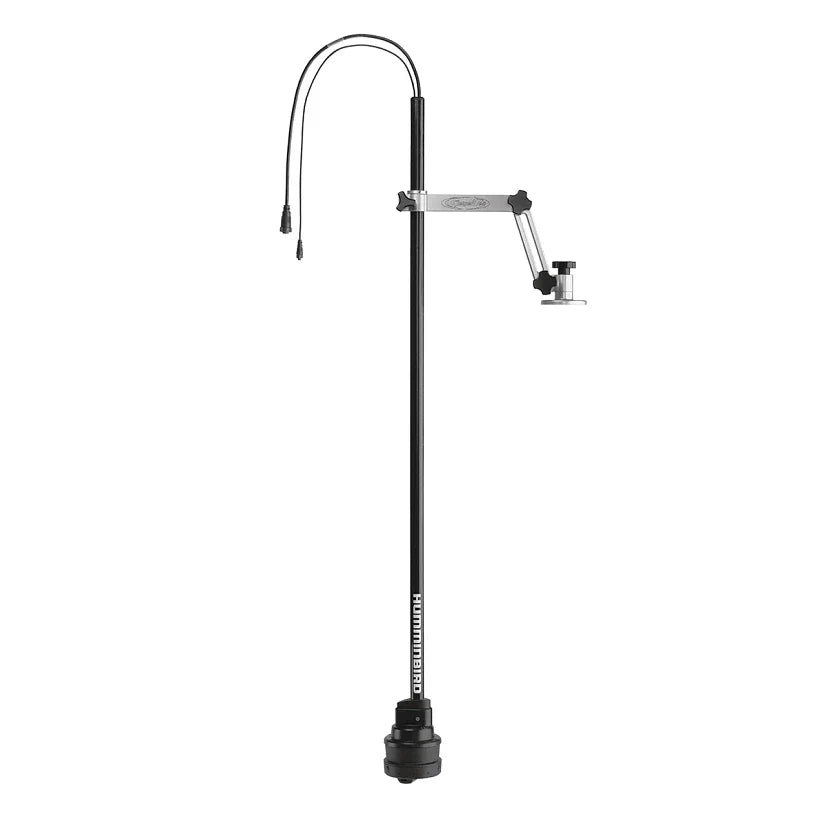

Every detail, in every direction, now for every boat. The MEGA 360 Imaging - Universal transducer shows you a 360-degree, detail rich view around your boat. Now bring this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum. And since MEGA 360 is mounted independent of your trolling motor's steering, you'll have an uninterrupted picture of what's below, even while fishing in wind, waves or using Spot-Lock™.
Compatible With Select HELIX: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N
Compatible With Other Fish Finders: All XPLORE, APEX and all SOLIX G2/G3 models
What's Included: MEGA 360 Imaging transducer with attached power cable and transducer cable, 10' SOLIX transducer extension cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth retaining ring for shaft
Around Your Boat: The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
Independently Mounted: Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
MEGA 360 or MEGA Side: Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.
Waypoint Marking: Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
Range Rings: Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
Combining Sonar and Maps: View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
Customizable Preferences: MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
Network Imaging Sharing - HELIX: Compatible HELIX models can share the MEGA 360 Imaging view via One Boat Network to HELIX G2N and newer models with software version 2.180 or later.
Network Imaging Sharing - SOLIX/APEX: Compatible SOLIX and APEX models can share the MEGA 360 Imaging view to all other SOLIX or APEX models on the One Boat Network.
Transducer Shaft Length: 50 inches
Weight: 16 lbs

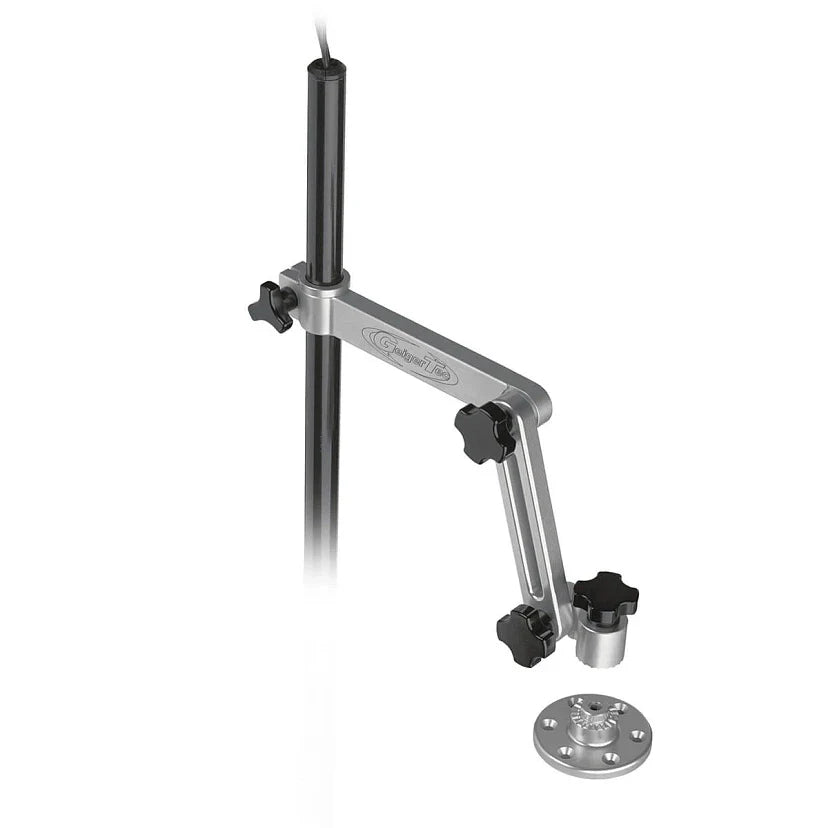

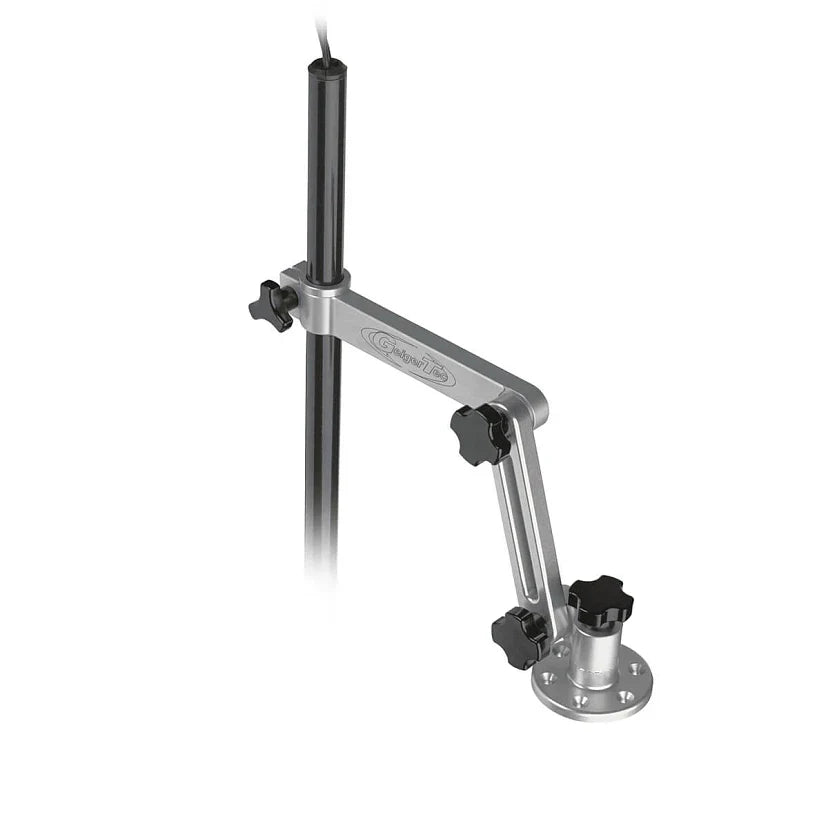

Mounting Bracket Material: CNC-machined billet aluminum
Warranty: 2-Year Limited Warranty
