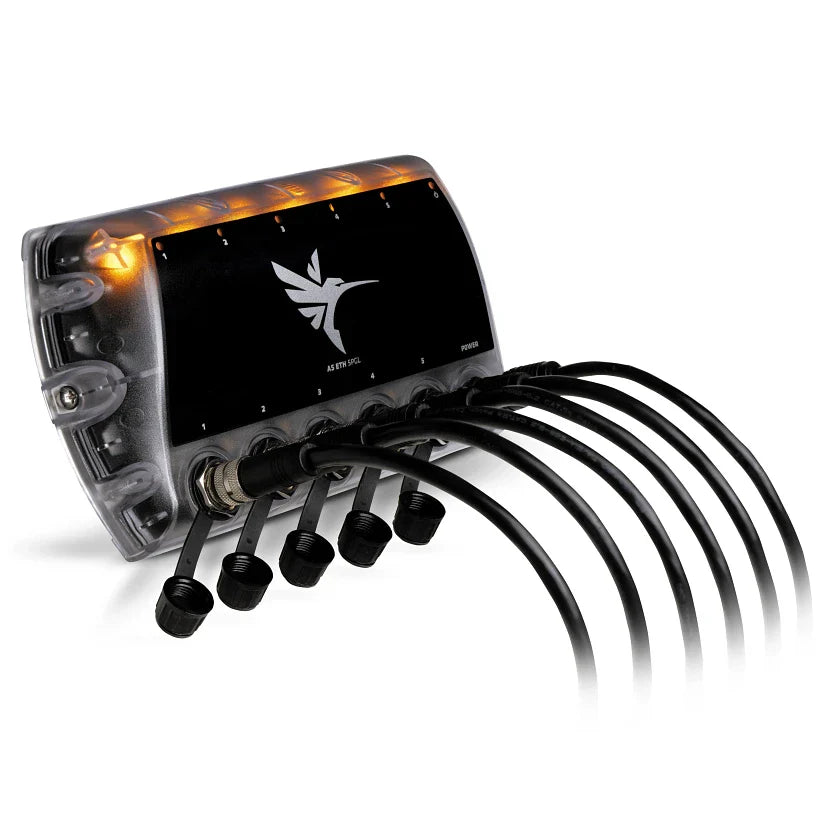

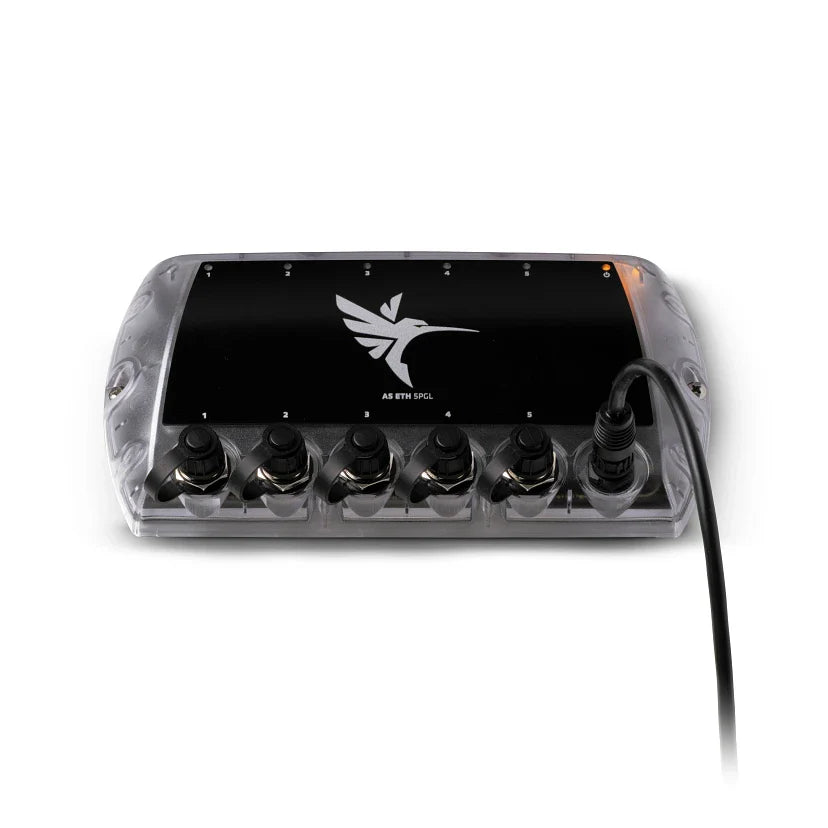

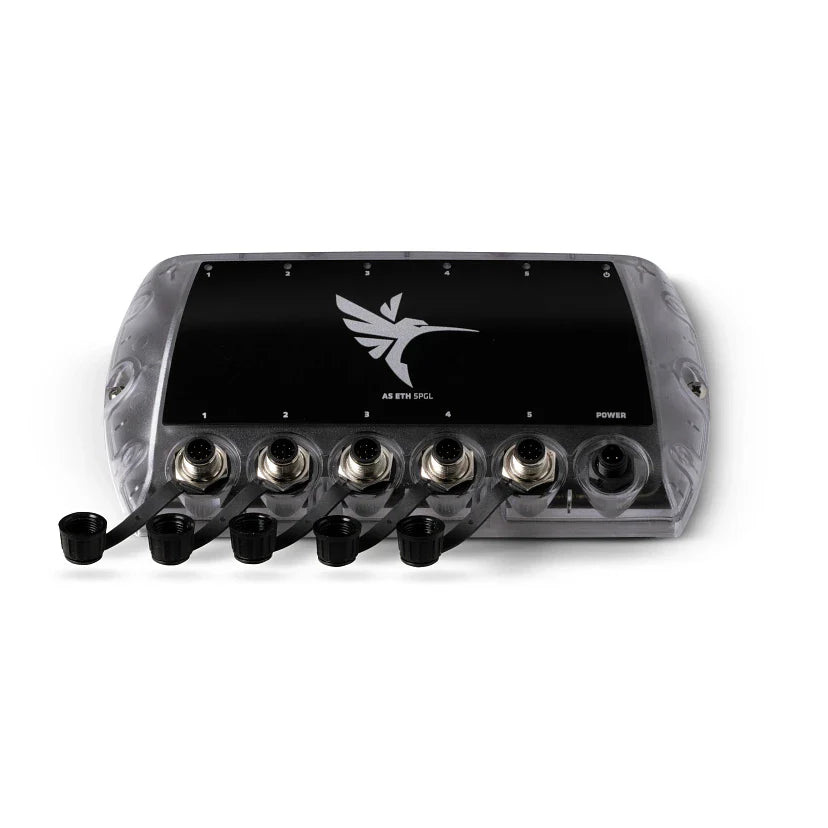

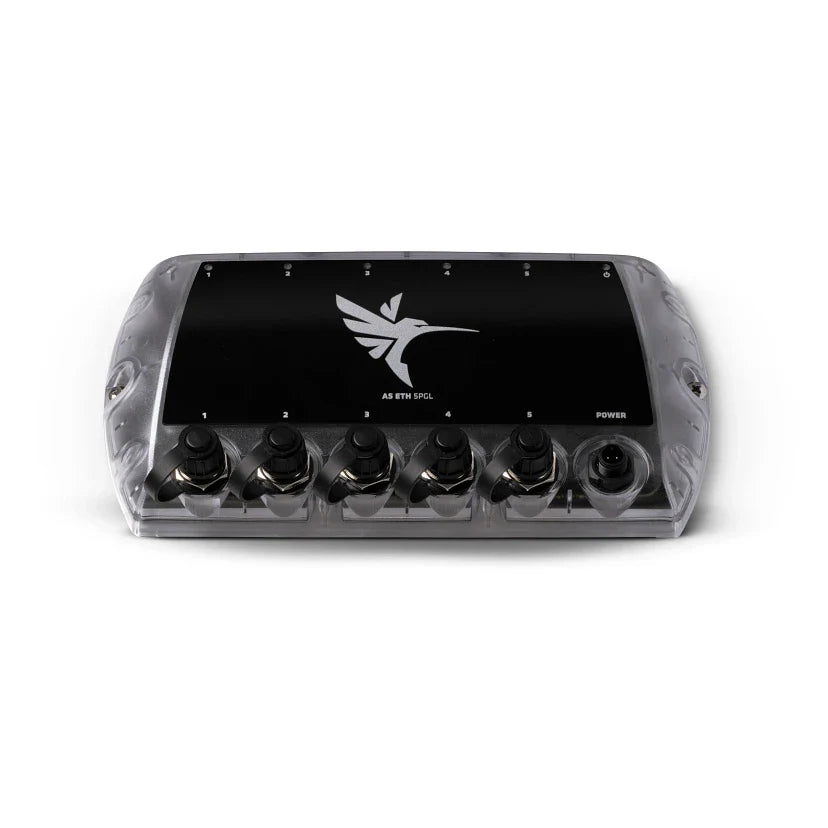

This Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Amber Connection Light: HELIX G4N and G3N Fish Finder, AS ETH NMEA2K, Minn Kota Trolling Motor, and Humminbird CHIRP Radar. Green Connection Light: APEX or SOLIX Fish Finder, MEGA Live Imaging, MEGA Live Imaging TargetLock, AS ETH 5PXG, and AS ETH 5PGL. Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection. Compatible with all APEX, All SOLIX, HELIX G4N and HELIX G3N fish finder models.
Network Data Sharing: Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network.
Link Additional Switches: Expand your network's capacity up to 20 devices by linking additional switches together (sold separately).
Compatible With: All XPLORE, APEX, SOLIX, HELIX G4N and HELIX G3N fish finder models.
Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
Amber Connection Light: XPLORE, HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
Amber Power Light: Connected to power
Additional Accessories Required: Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch.

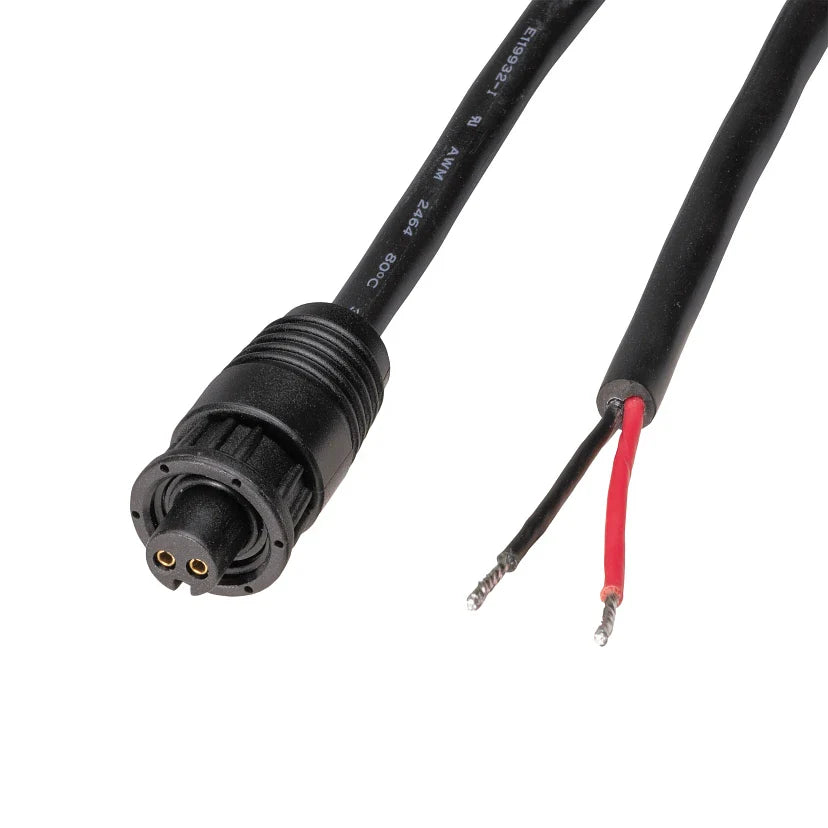

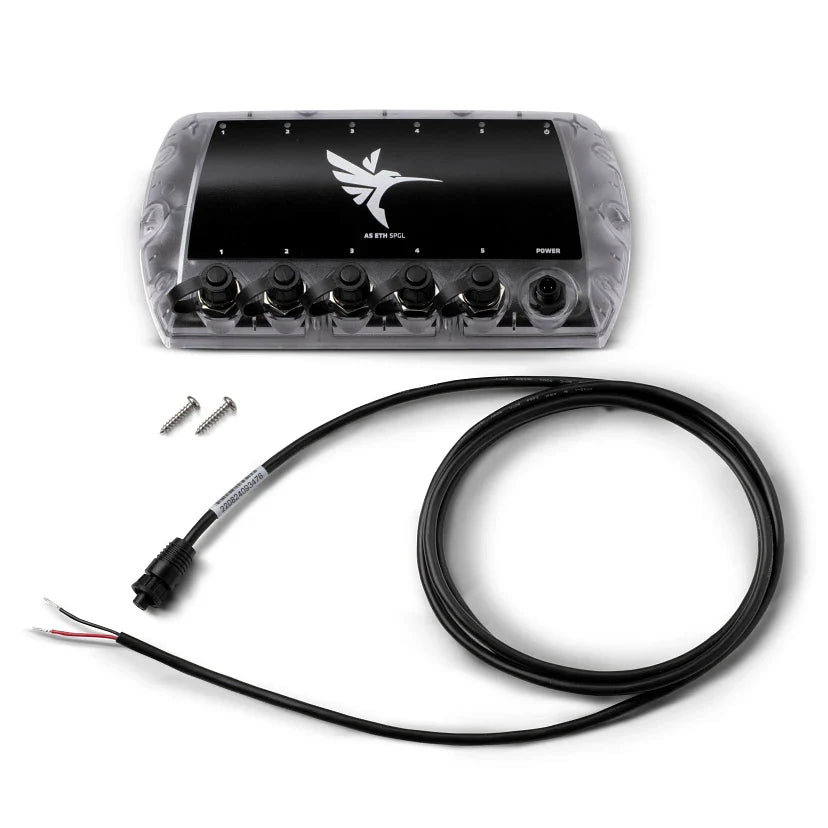

What's Included: Ethernet switch, Power cable, Mounting hardware
Warranty: 1-Year Limited Warranty
