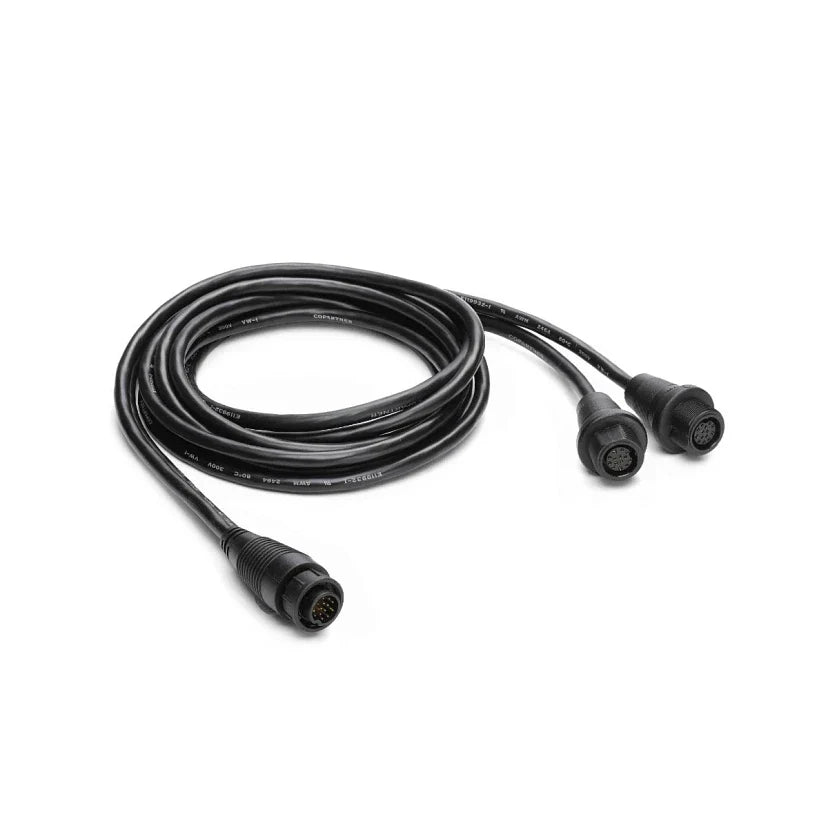

This Y cable allows for the connection of a MEGA 360 Imaging transducer and a 2D / MDI transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder.
Compatible With
MEGA 360, All XPLORE models, All APEX models, All SOLIX G2 and G3 models, Built-in MEGA Imaging transducers on select Minn Kota trolling motors
Compatible With - HELIX
Compatible with the following HELIX models when used with #720109-1 AD HELIX M360: HELIX 15 MSI+ GPS G4N, HELIX 15 MDI+ GPS G4N, HELIX 12 MSI+ GPS G4N, HELIX 12 MSI+ GPS G3N, HELIX 12 MDI+ GPS G4N, HELIX 12 MDI+ GPS G3N, HELIX 10 MSI+ GPS G4N, HELIX 10 MSI+ GPS G3N, HELIX 10 MDI+ GPS G4N, HELIX 10 MDI+ GPS G3N, HELIX 9 MSI+ GPS G4N, HELIX 9 MSI+ GPS G3N, HELIX 9 MDI+ GPS G4N, HELIX 9 MDI+ GPS G3N, HELIX 8 CHIRP MSI+ GPS G4N, HELIX 8 MSI+ GPS G3N
Cable Length
10 ft (3m) cable MEGA 360 side, 30 in (76 cm) cable on 2D / MDI side
Combine Sonar
For use when connecting a MEGA 360 Imaging transducer to a compatible XPLORE, APEX, SOLIX, or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin 2D/MDI transducer
Adapter Required
If this cable is being used with a HELIX fish finder, then the #720109-1 AD HELIX M360 must be attached between the single plug end of the Y cable and the HELIX unit
Secure Connection

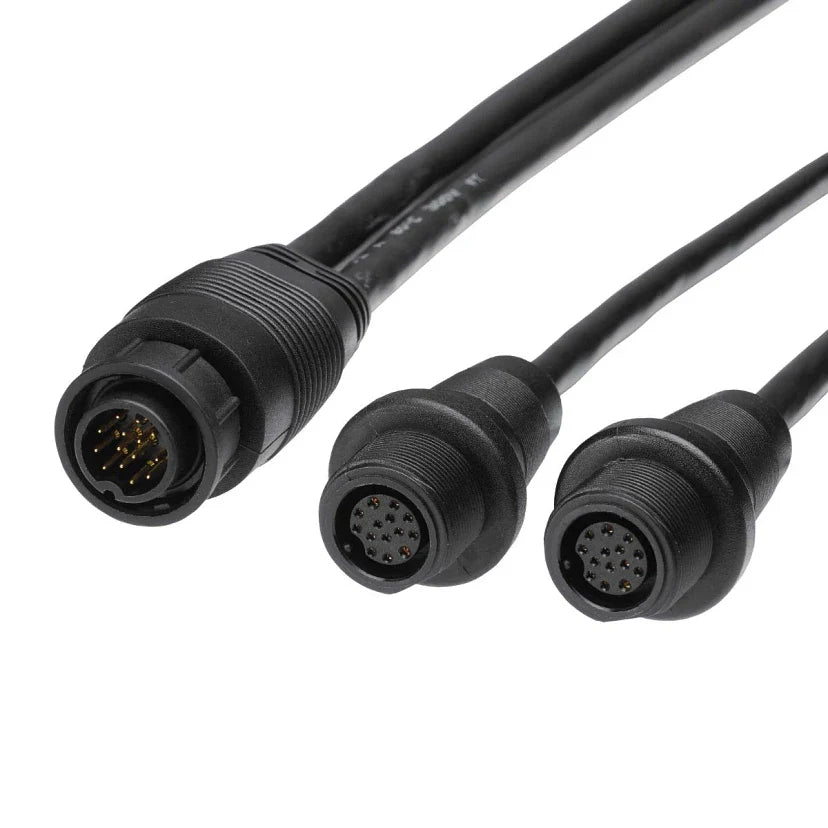

Waterproof, screw-on, 14-pin connectors
Warranty
1-Year Limited Warranty
