You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.
THE LONG VIEW
The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.
A CLOSE VIEW
The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
IMAGE STABILIZATION
A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES
Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.
FORWARD MODE
Now scout even farther ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity deeper beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
DIMENSION
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

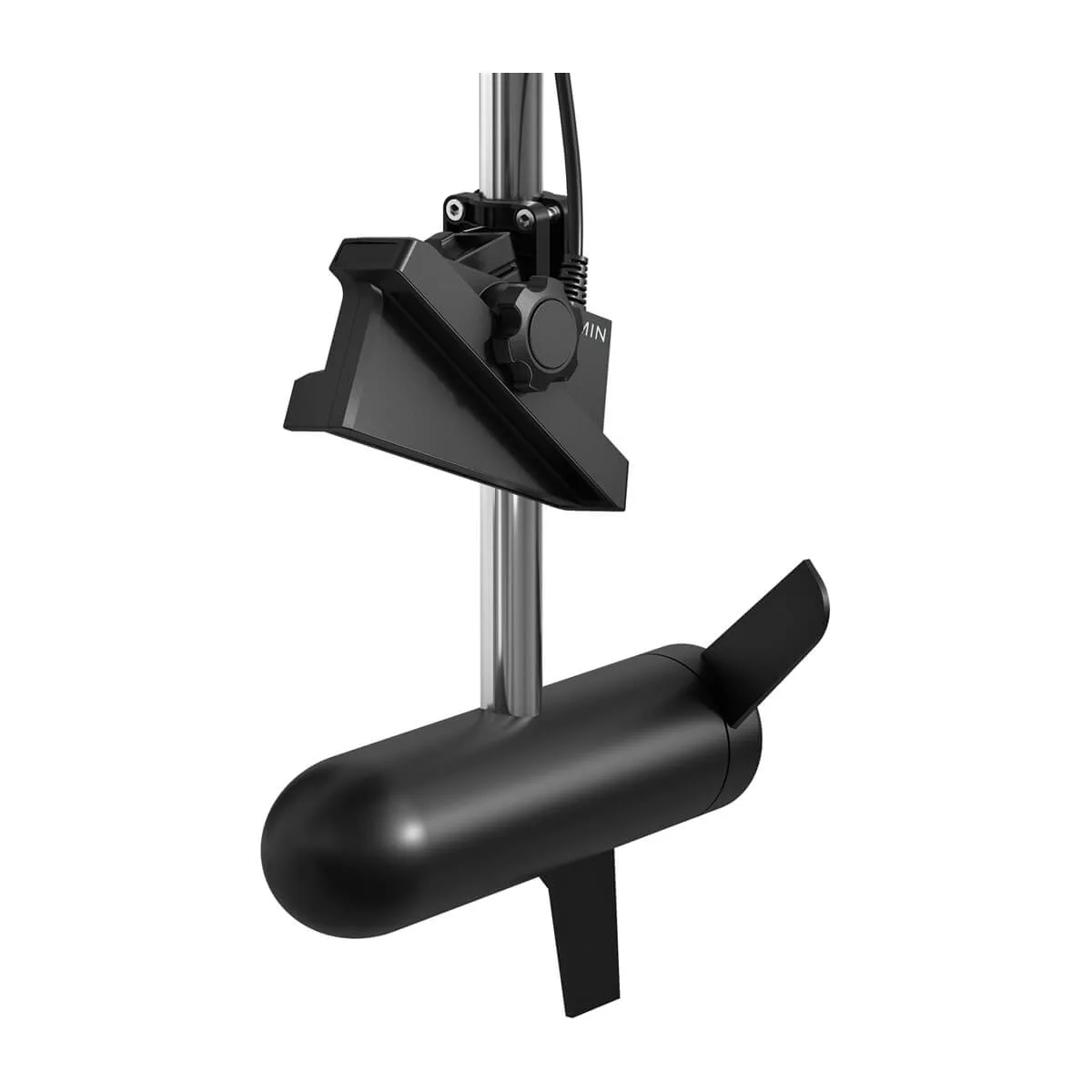

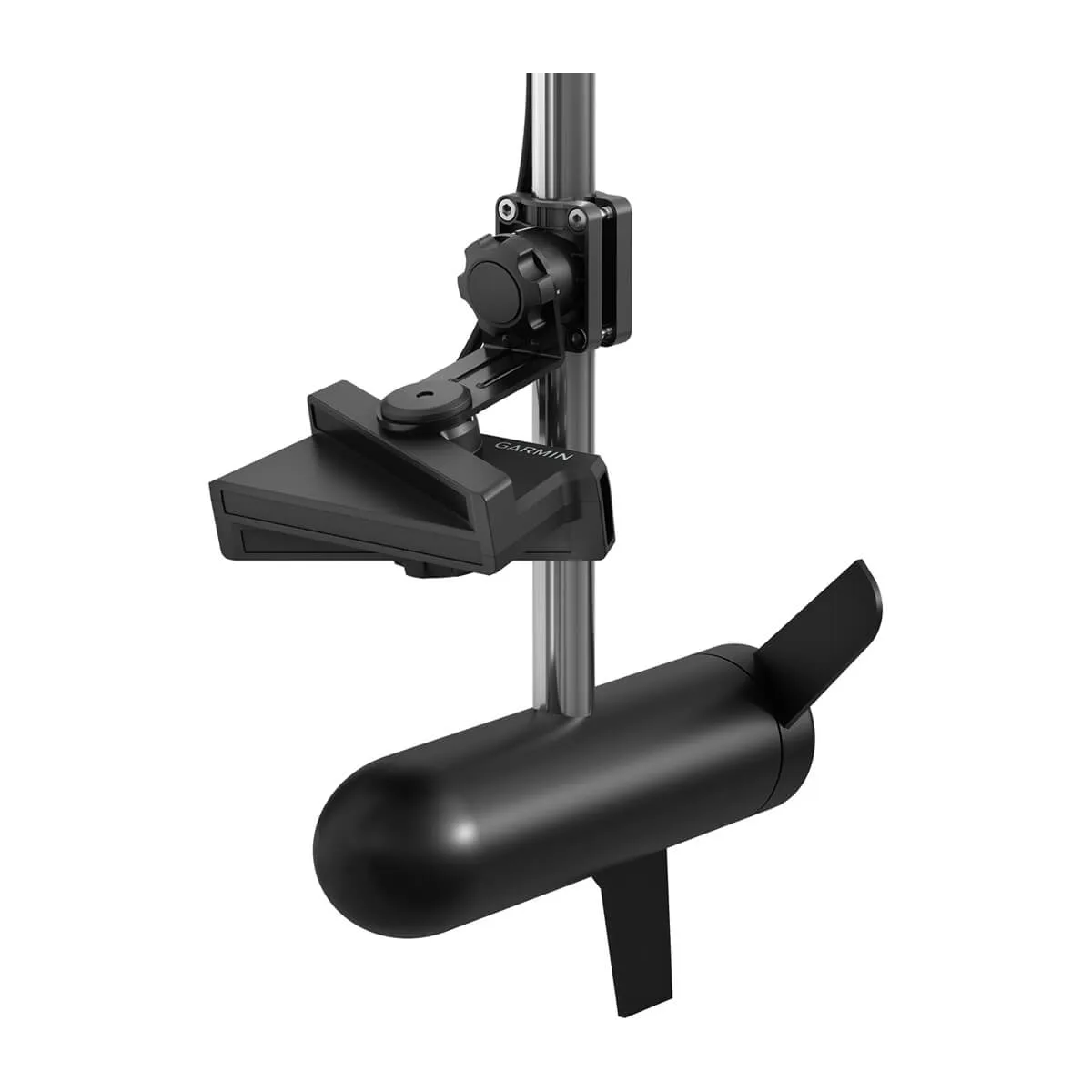

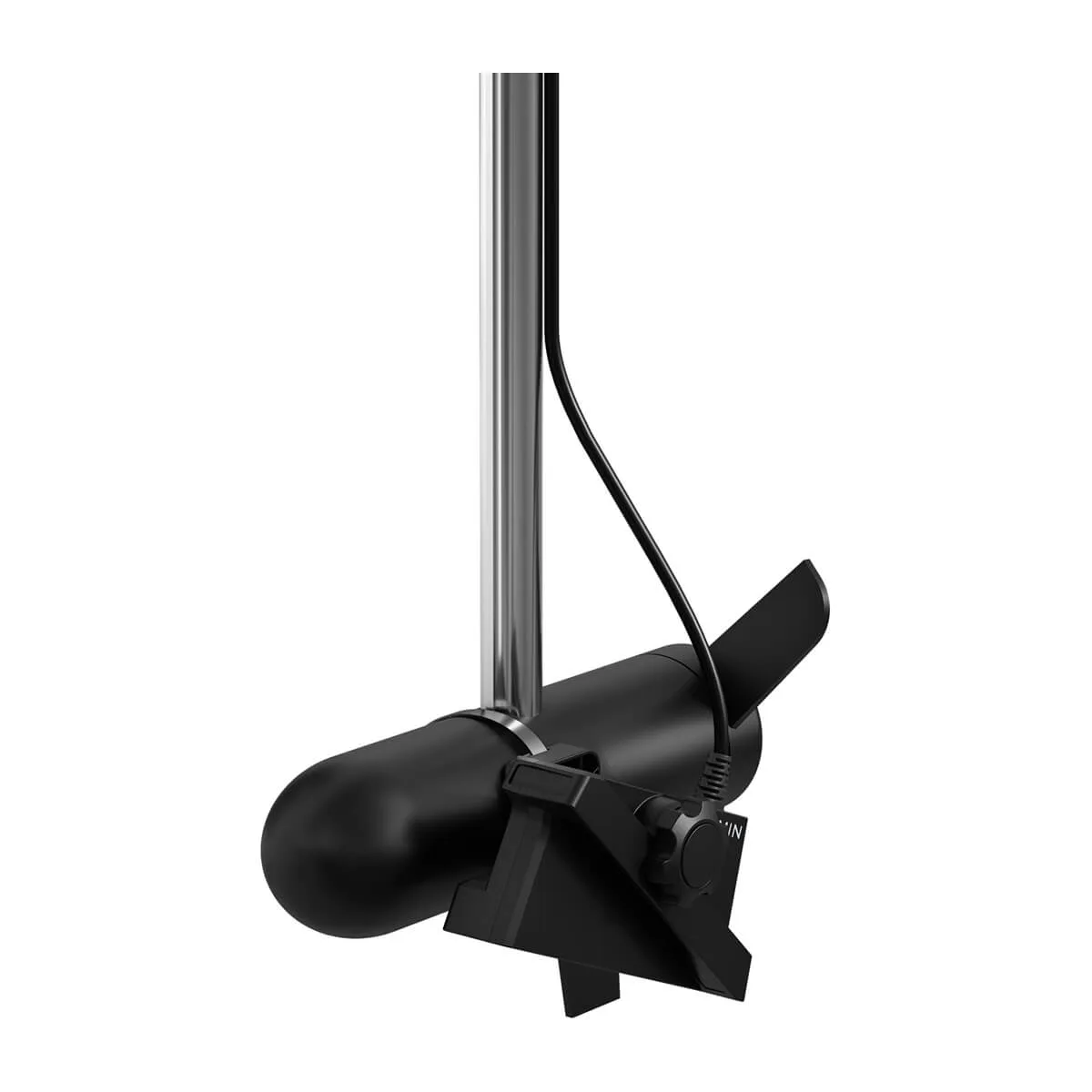

LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
WEIGHT
GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE
GLS 10 Black Box: Operating: -15 C to 70 C
LVS62 Transducer: Operating: 0 C to 40 C
