The Panoptix LiveScope System with Thru-Hull Transducer gives you real-time live-scanning sonar: view fish, structure and your lure around or ahead of your boat — even when it’s stationary. :contentReference[oaicite:1]{index=1}
Specifications
-
Transmit power: 500 W. :contentReference[oaicite:3]{index=3}
-
Maximum range (Forward mode): Up to about 200 ft (~61 m). :contentReference[oaicite:4]{index=4}
-
Beamwidth: 20° × 135°. :contentReference[oaicite:5]{index=5}
-
Transducer cable length: 20 ft (~6.1 m). :contentReference[oaicite:6]{index=6}
-
Water rating: IPX7 for the sonar black box. :contentReference[oaicite:7]{index=7}
-
Power input: 10-32 V DC. :contentReference[oaicite:8]{index=8}
-
Compatible systems: Works with Garmin Marine Network chartplotters including GPSMAP 8400/8600, 7400/7600, 1002/1202 and ECHOMAP Plus 70cv/70sv and 90sv series. :contentReference[oaicite:9]{index=9}
What’s Included

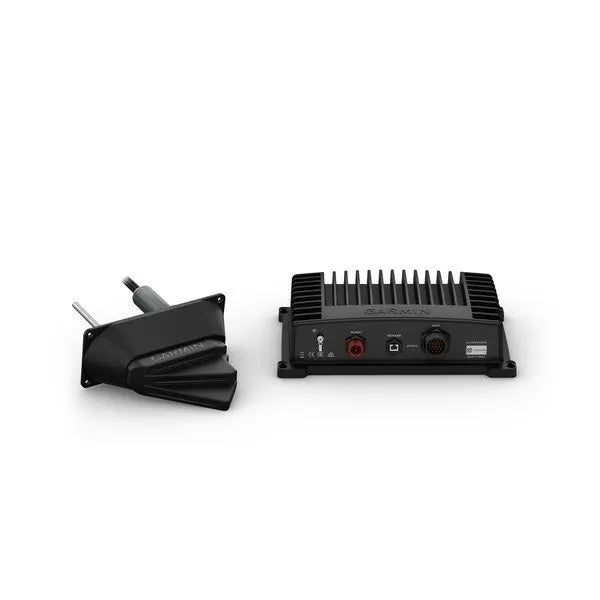

- GLS 10 sonar black box
- LVS32-TH thru-hull transducer
- Thru-hull mount hardware
- Power cable
- Garmin Marine Network cable (small connector) & adapter
- Documentation & mounting hardware :contentReference[oaicite:10]{index=10}
