Upgrade your ice-fishing setup with live-scanning sonar built for cold weather. With the LiveScope Plus Ice Fishing System, you’ll see real-time images of fish and structure under the ice—up to 200 feet away in any direction. :contentReference[oaicite:1]{index=1}
Key Features
-
LiveScope Forward & Down modes: Scan ahead of you or directly under your hole and watch how fish react to your bait. :contentReference[oaicite:2]{index=2}
-
Ice-fishing ready transducer: Comes with the LVS34-IF ice-fishing transducer and a cold-weather transducer cable. :contentReference[oaicite:3]{index=3}
-
High-resolution sonar images: Reduced noise and clearer target separation help you distinguish fish and structure. :contentReference[oaicite:4]{index=4}
-
Easy to add to your setup: Requires your compatible chartplotter (not included) and a 12 V battery—mounting hardware and power cables are included. :contentReference[oaicite:5]{index=5}
Specifications
- Transducer beamwidth: 20° × 135° :contentReference[oaicite:6]{index=6}
- Transducer cable length: 20 ft (≈ 6.1 m) :contentReference[oaicite:7]{index=7}
- Number of transducer pins: 21 :contentReference[oaicite:8]{index=8}
- Ice transducer max range (Down & Forward): up to 200 ft (≈ 61 m) :contentReference[oaicite:9]{index=9}
- Transmit power: 500 W :contentReference[oaicite:10]{index=10}
- Operating temperature (transducer): 0 °C to 40 °C; module: –15 °C to 70 °C :contentReference[oaicite:11]{index=11}
- Water-rating (module): IPX7 :contentReference[oaicite:12]{index=12}
What’s Included

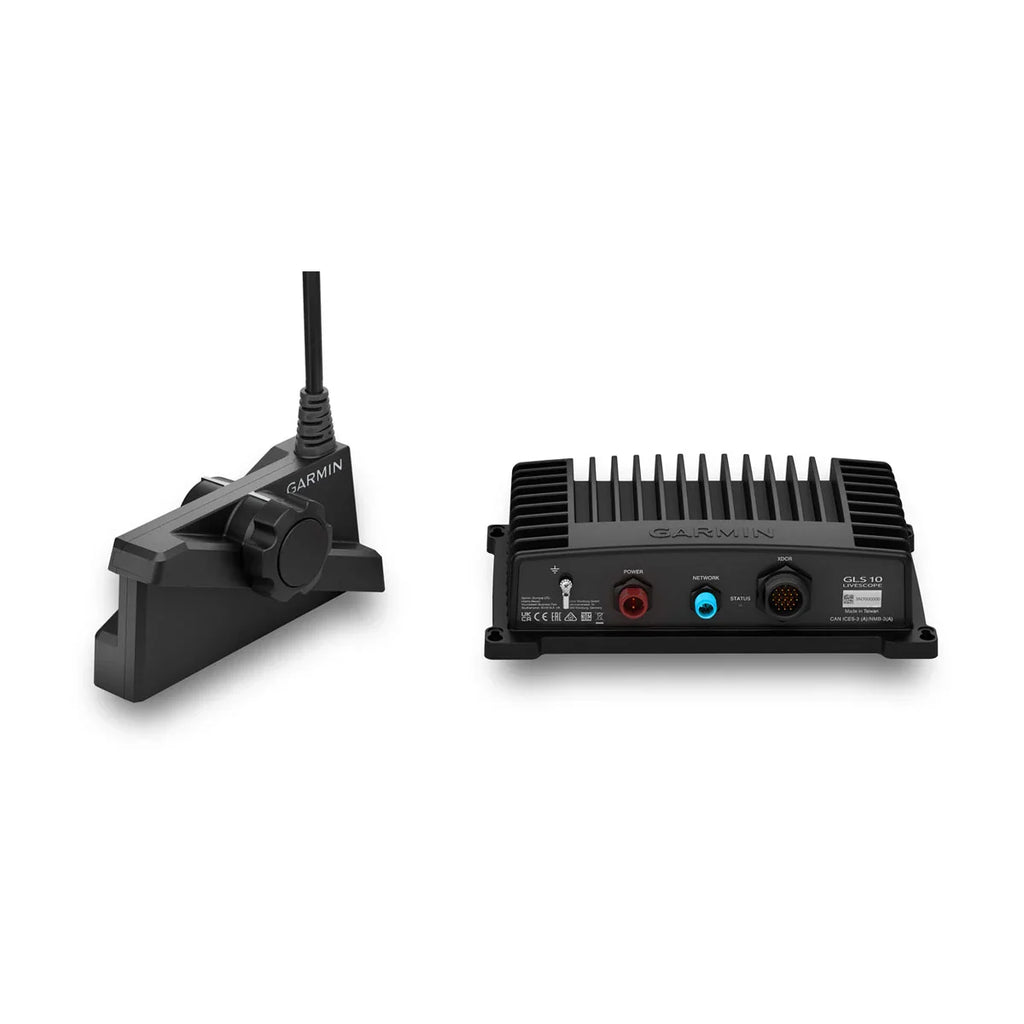

- GLS 10 sonar module (black box) :contentReference[oaicite:13]{index=13}
- LVS34-IF ice-fishing transducer :contentReference[oaicite:14]{index=14}
- 0° pole mount for ice use :contentReference[oaicite:15]{index=15}
- Lithium-ion “four-in-one” power cable :contentReference[oaicite:16]{index=16}
- Documentation & mounting hardware :contentReference[oaicite:17]{index=17}
