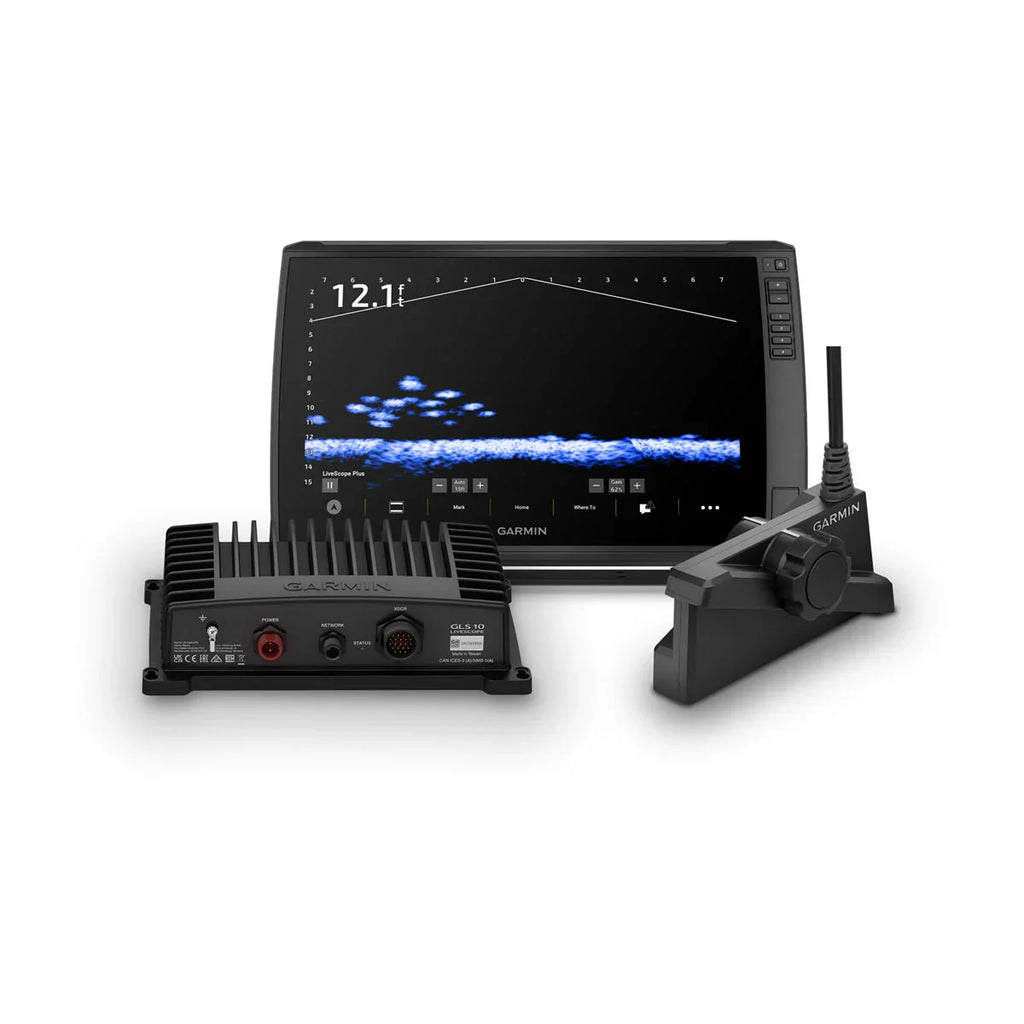

Includes ECHOMAP™ Ultra 2 166sv Chartplotter and LiveScope™ Plus System
The Garmin ECHOMAP Ultra 2 16″ (model 010-03386-02) is a premium, ice-fishing-ready chartplotter and sonar system built for those who demand top-tier performance. With vivid Full HD display, preloaded mapping, and bundled LiveScope system, it delivers exceptional clarity and detail in harsh winter conditions.
Key Features
-
16″ Full HD Display: Large, high-resolution screen optimized for clarity in bright and cold outdoor environments. :contentReference[oaicite:1]{index=1}
-
Ice-House Bundle Ready: Model 010-03386-02 is listed as an “Ice House System” bundled version including the ECHOMAP Ultra 2 and LiveScope+ system. :contentReference[oaicite:2]{index=2}
-
Built-in UHD & Scanning Sonar Support: Supports Ultra HighDefinition ClearVü™ and SideVü™ scanning sonar, plus CHIRP traditional sonar and LiveScope® live-scanning sonar. :contentReference[oaicite:3]{index=3}
-
Preloaded Mapping: Preloaded navigation charts (e.g., Navionics+ for US/Canada) in relevant bundles. :contentReference[oaicite:4]{index=4}
-
Advanced Connectivity: Multi-band GPS for enhanced accuracy. NMEA 2000® compatibility. Wireless sharing of sonar/waypoints/routes. Bluetooth® voice-control support. :contentReference[oaicite:5]{index=5}
Specifications
-
Dimensions: Approx 16.9″ × 10.5″ × 3.14″ (43.0 × 26.6 × 8.0 cm) :contentReference[oaicite:6]{index=6}
-
Weight: ~9.5 lb (4.31 kg) :contentReference[oaicite:7]{index=7}
-
Display Resolution: 1920 × 1080 pixels (Full HD) :contentReference[oaicite:8]{index=8}
-
Water Rating: IPX7 :contentReference[oaicite:9]{index=9}
-
Power Input: 9–18 V DC; typical drawing ~3.9 A at 12 V, max ~6.6 A at 12 V. :contentReference[oaicite:10]{index=10}
What’s Included
- Chartplotter unit – ECHOMAP Ultra 2 16″ (166sv series) :contentReference[oaicite:11]{index=11}
- LiveScope+ system package (per ice-house bundle spec) :contentReference[oaicite:12]{index=12}
- Mounting hardware (bail mount with knobs + optional flush) :contentReference[oaicite:13]{index=13}
- Protective sun cover, trim caps, documentation & power cable :contentReference[oaicite:14]{index=14}
