AVAILABLE MID-AUGUST 2025

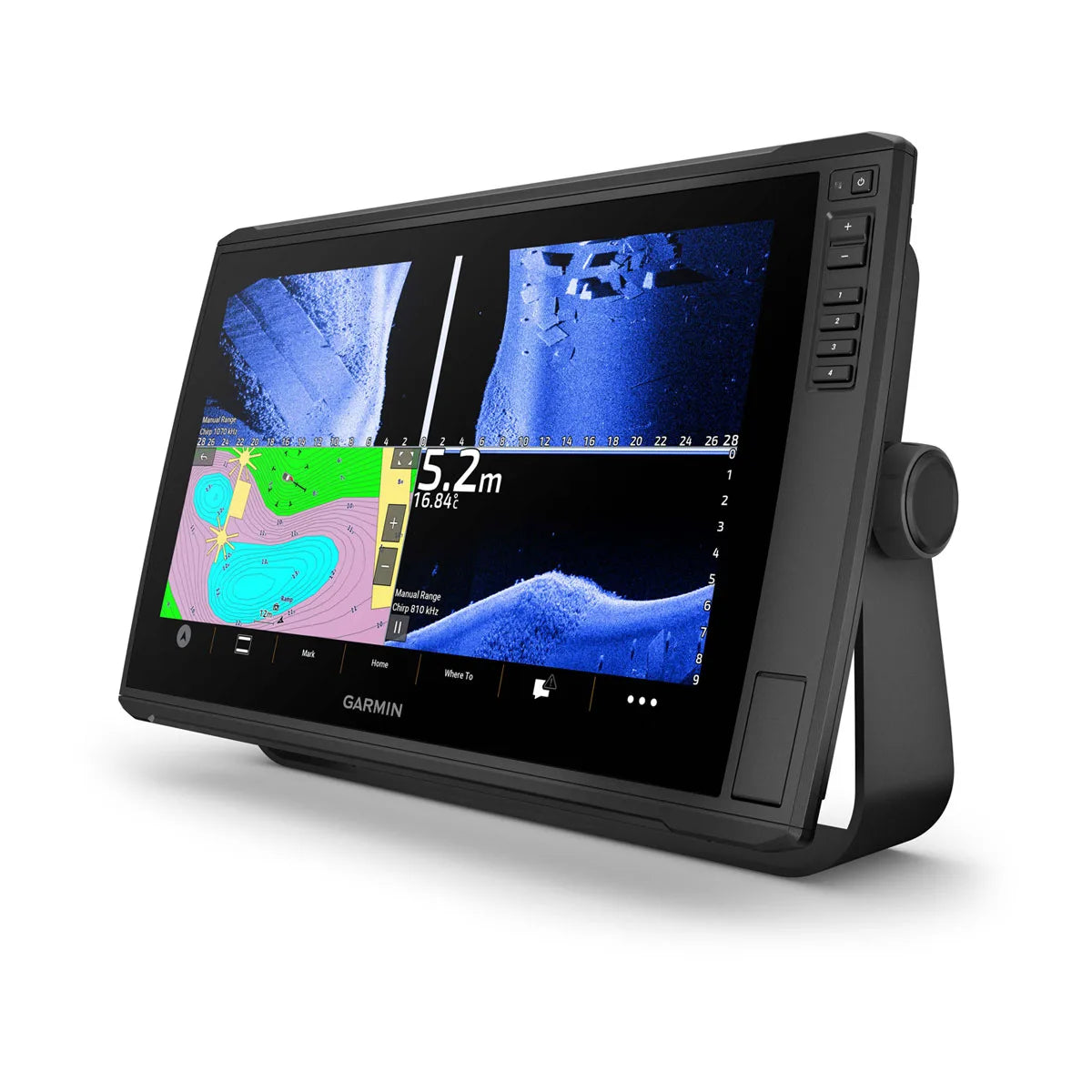

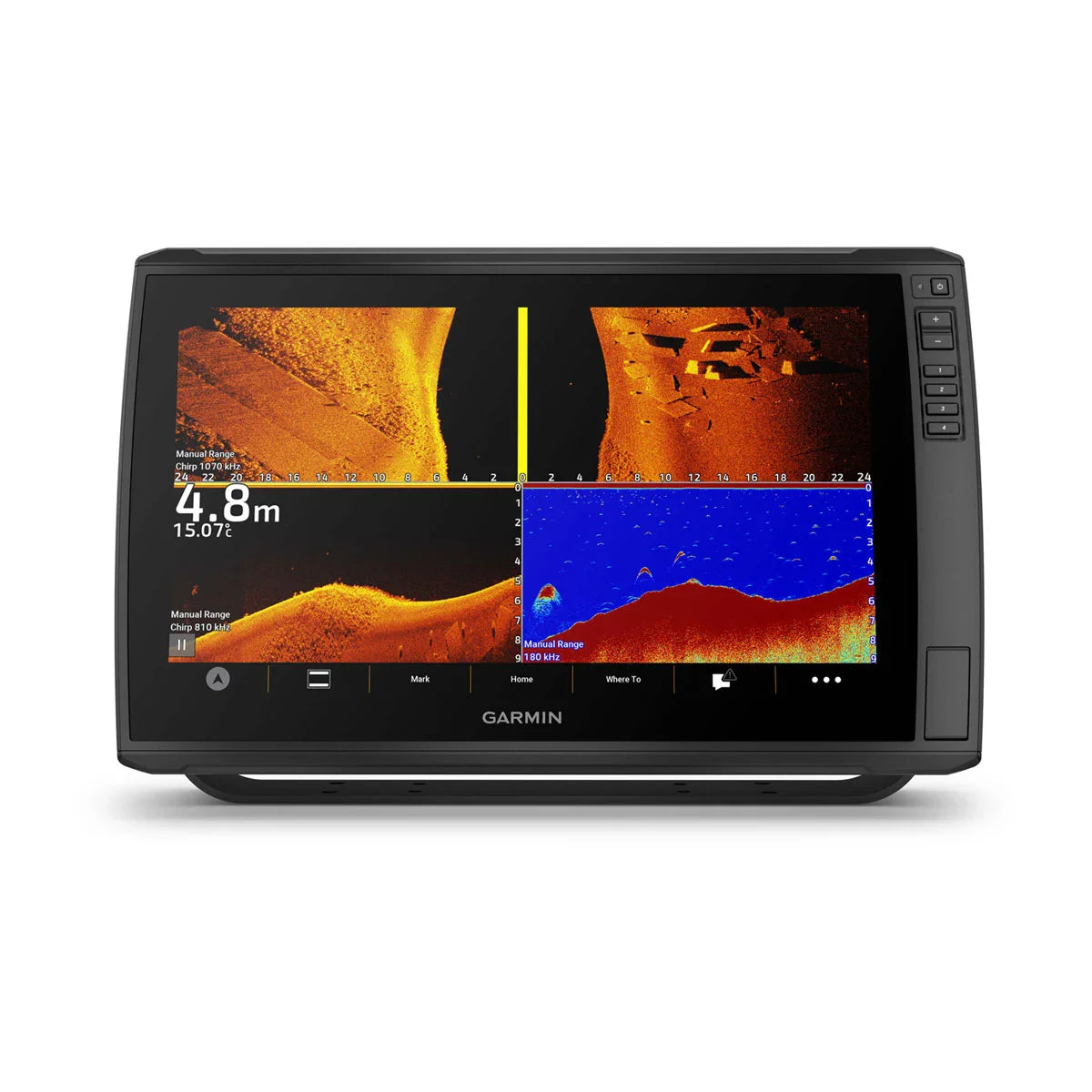

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
- 16-inch Touchscreen With Keyed Assist
- Hdmi Output Connectors For Screen Sharing
- Bluetooth® Technology Enables Voice Control Features
- Supports Livescope Sonar1 And More
- Wirelessly Network; Share Sonar, Waypoints And Routes2
- Multi-band Gps For Superior Position Accuracy
IN THE BOX
- ECHOMAP Ultra 162sv
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation

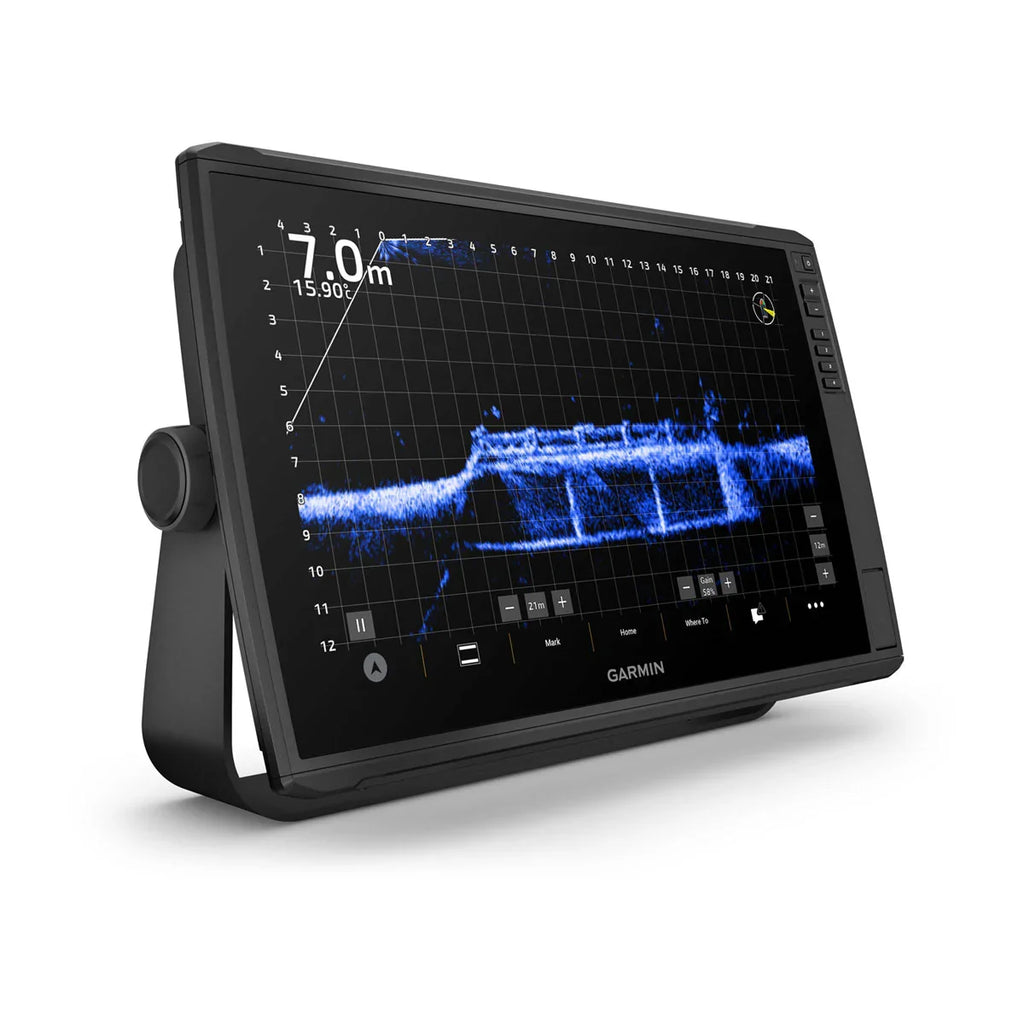

LIVESCOPE SONAR SUPPORT
The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

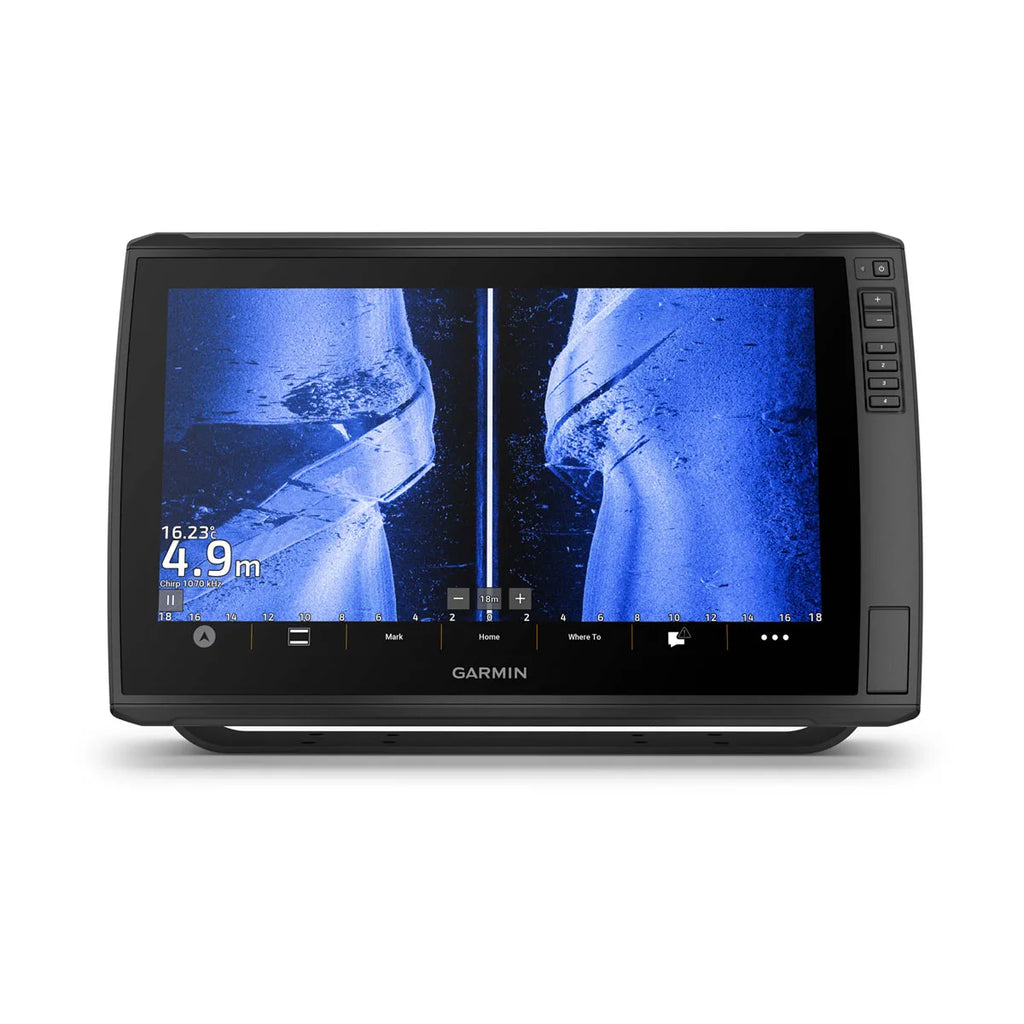

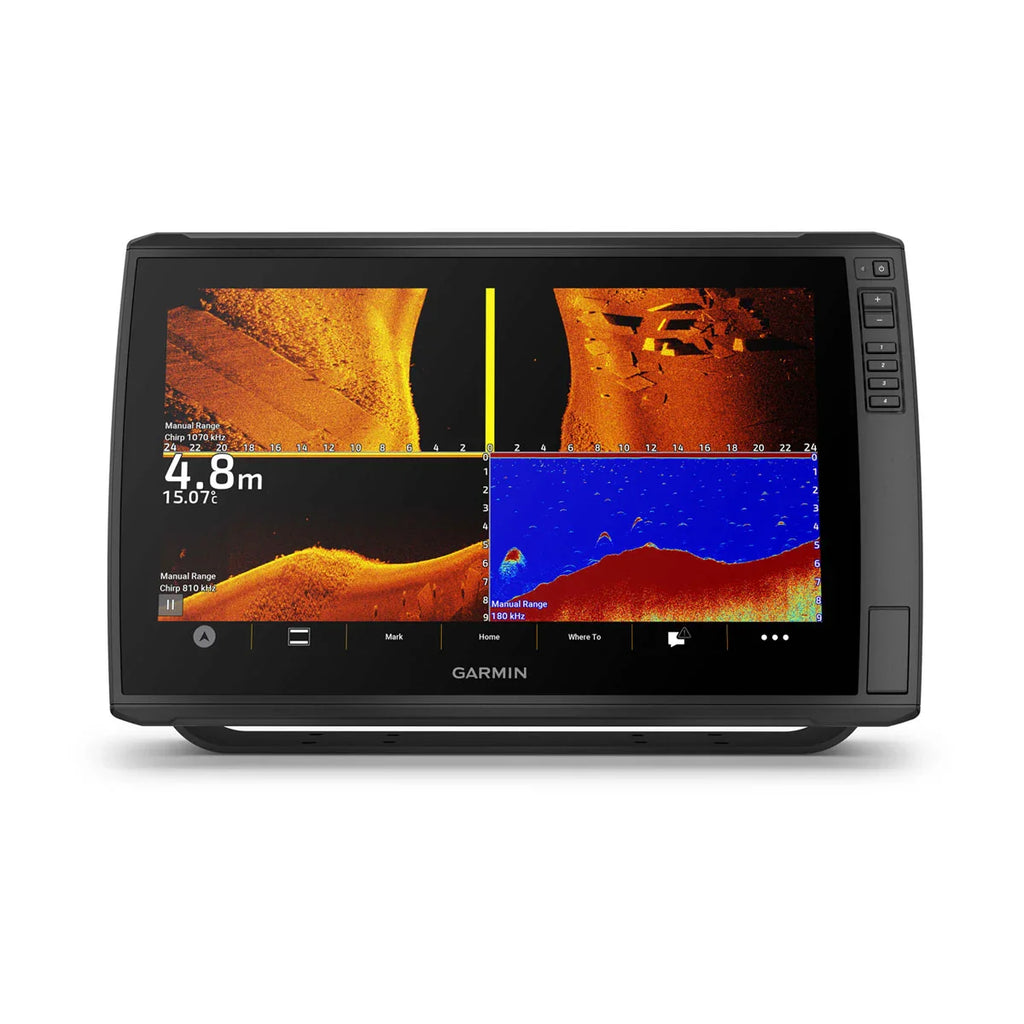

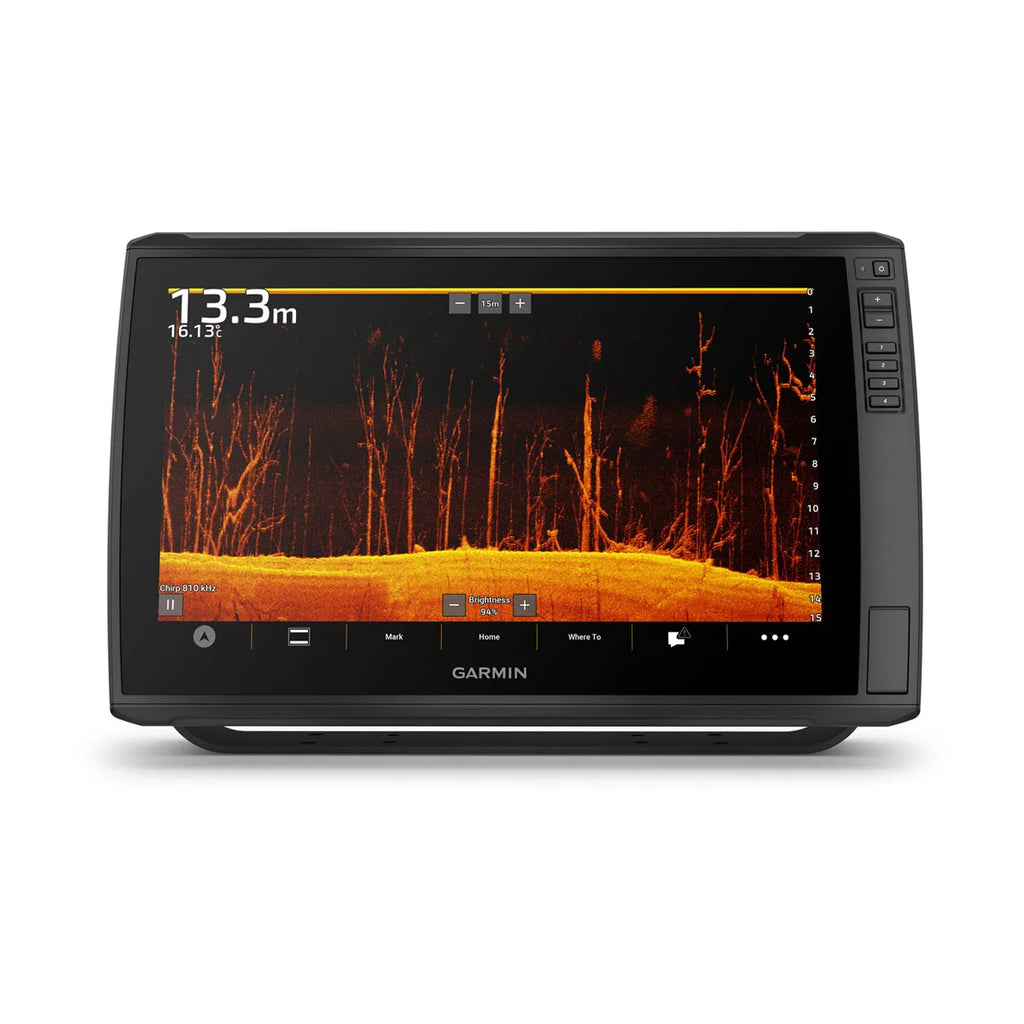

BUILT-IN UHD SONAR
Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
PRELOADED CHARTS
Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+™ premium mapping is optionally available (sold separately).

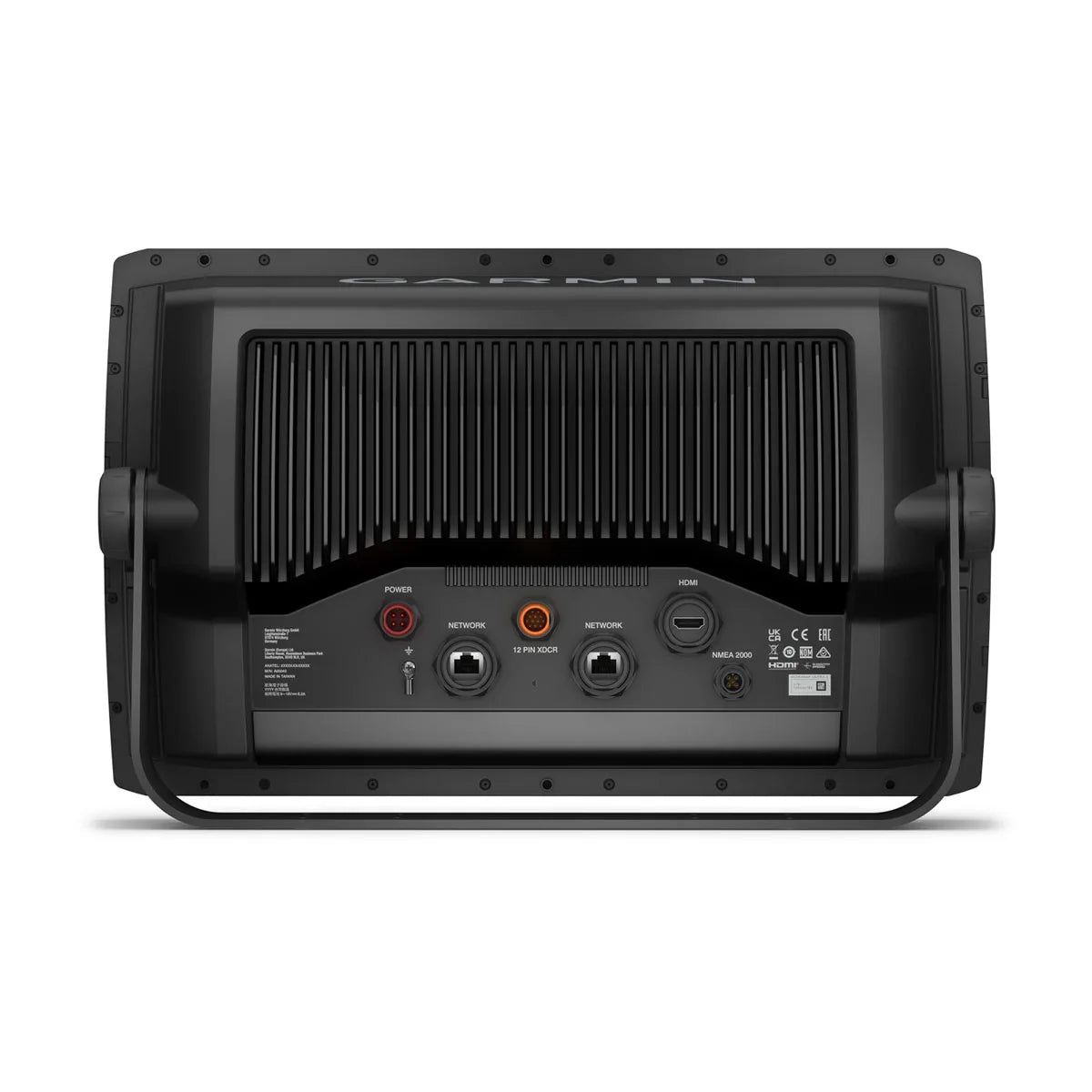

HDMI OUTPUT
Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES
Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
WIRELESS NETWORKING
Share sonar3, waypoints and routes with another ECHOMAP Ultra 2 or UHD2 plotter on board.
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
FORCE TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
SCREEN RECORDING
Use the recording feature through the ActiveCaptain app on your smartphone to share images from your chartplotter.

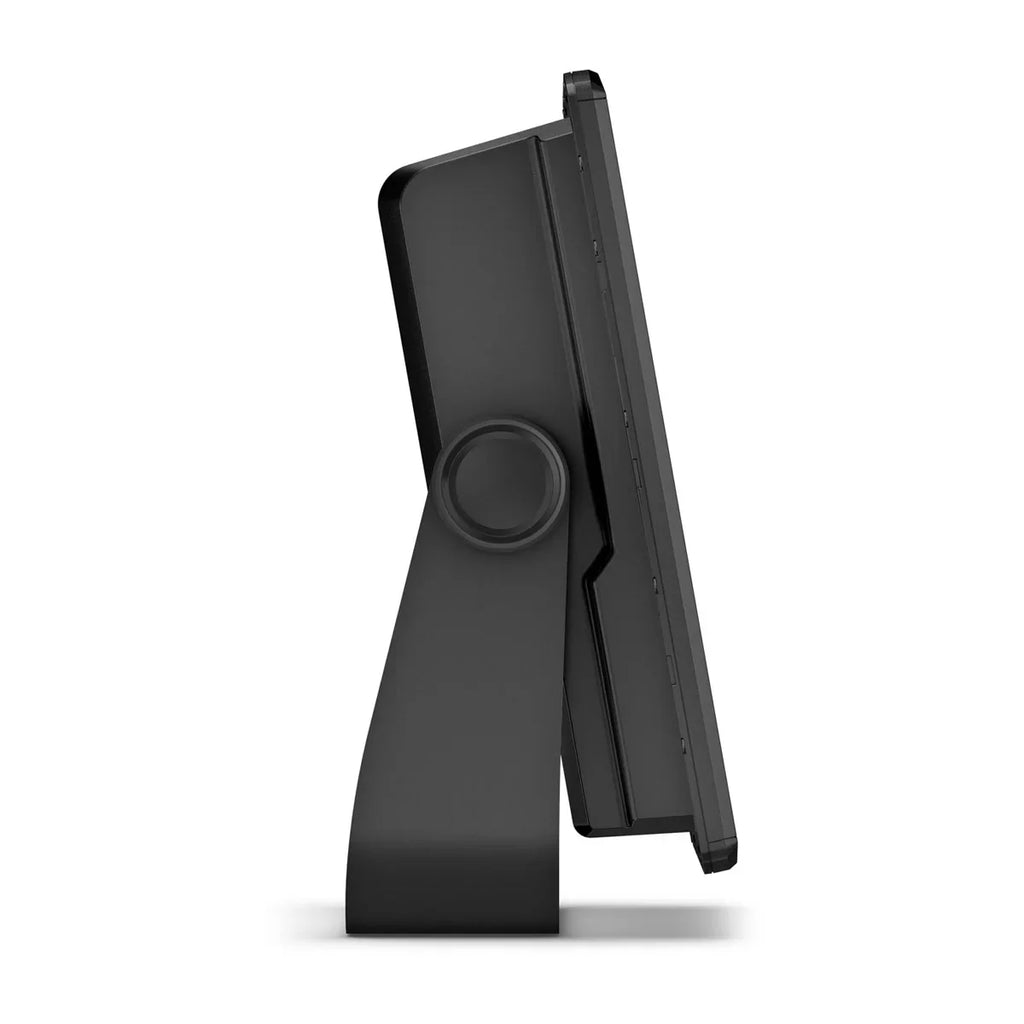

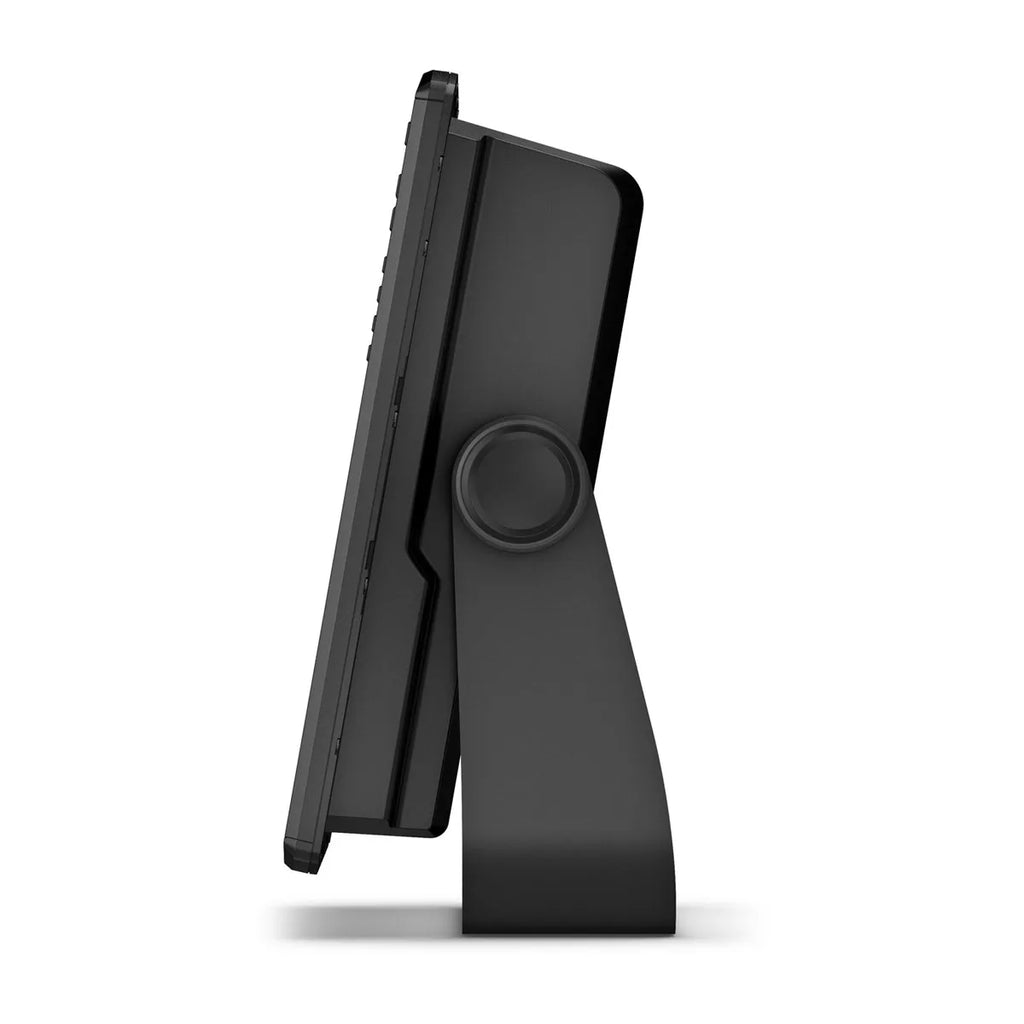

BAIL MOUNT WITH KNOBS
Surface mount your compatible ECHOMAP Ultra 2 chartplotter by using our bail mount with knobs; the mount tilts for optimum viewing.
